Hardware and firmware by The IceBear,
support board and box built by The AirBear

This second version was built to stay in service. It was finalized in Febuary 2012.

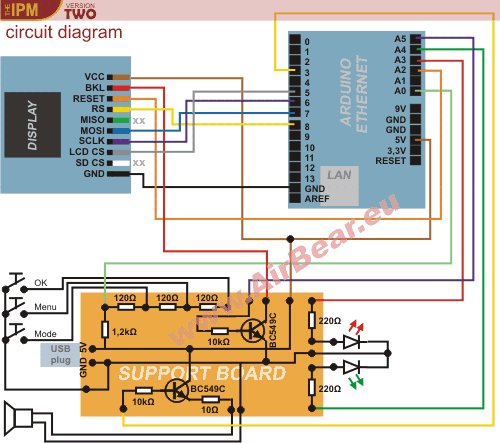

After problems with the power supply (we used the on-board supply and everytime the speaker sounded the system rebooted) we built our own power supply board with some other integrated circuits (for the speaker and the buttons for example).
Finally we created a nice box where all cables, boards, buttons, screen and speaker fitted in.

Temporary testing construction Display test
Additional support board Designing the box's face
Everything fits into the box Done!
Menu display Sample message

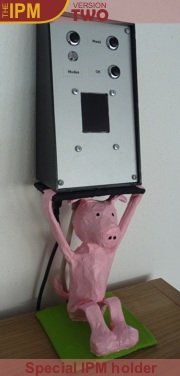

Special IPM holder ;-)

The IPM was decommissioned in October 2018
